HDPE Long Life Solar Floating Pontoon Blow Molding Machine

Ask Lasest Price
Brand Name :	DAWSON
Model Number :	ABLD100
Certification :	CE
Price :	US $50,000-68,000/ Set
Payment Terms :	L/C, T/T
Supply Ability :	20-30 sets / month
Delivery Time :	35-45 working days

Add to Cart

Product Details
Company Profile

HDPE Long Life Solar Floating Pontoon Blow Molding Machine

HDPE Long Life Solar Floating Pontoon Blow Molding Machine

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Extrusion blow molding machine ABLD100

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

extruder
1	Screw diameter	100mm
2	L/D ratio	24:1
3	Screw speed	15~50r.p.m.
4	Drive motor	45Kw
5	Heating zone with cooling fan	6 zone
6	Output/Capacity	170 Kg/hr(HDPE particle)
8	Heating capacity	25.1 kw
9	Vertical adjustment of head	500mm
10	Forward/Backward adjustment of head	500mm
11	Groove feed barrel cylinder	Have IKV
12	Gear box	Hard gear decelerator
13	Ladder and safety rails	Have
Accumulator Head
1	Accumulator capacity	20L(15kgHDPE)
2	Design	First in and first out
3	Heating zone	6 zone
4	Heating capacity	25.1kw
5	Max die&pin diameter	450mm
6	Die head axis with pre-blow	Ø120mm
7	Accumulator push-out stroke measurement	Transducer Italy Gefran
8	Injection pressure	12 Mpa
9	Extruder stop	Have
CLAMPING UNIT
1	Tie bar	Two tie bar
2	Platen size	900(W)X1400(H)
3	Length of mold	900-960mm
4	Clamping force	780KN
5	Close/Open stroke	880-1700mm
6	Mold weight	Max. 5000 kg
7	Clamping stroke measurement	Transducer Italy Gefran
8	Hydraulic valve	Taiwan Hitech
9	Number of hydraulic cylinder	1
10	High pressure	14 Mpa
11	Support parts for platen movement	Liner Guide
HYDRAULIC SYSTEM
1	Main motor/vice motor	AC15Kw/15Kw
2	Hydraulic valve	Taiwan Hitech
3	Hydraulic pump	Taiwan Hitech
4	Oil tank capacity	850L
5	Operating pressure	12 Mpa
6	Cooling water for oil	fixed
7	Control of oil level	be observed dipstick
PNEUMATIC SYSTEM
1	Operating pressure	0.8 Mpa
2	Blow pressure	0.8 Mpa
3	Needle blow circuit	High & low pressure
4	Intermittent blow	Have
5	Controlled support air for parison	Have
6	Air Valves	AIRTAC
7	Quick exhaust for support air	Have
PARISON CONTROL
1	Programmer	JAPAN MOOG
2	Servo valve	MOOG
3	Servo cylinder	Intergret of die head
4	Hydraulic pack	TAIWAN YOSHE Variable Displacement Piston Pumps
ELECTRICITY
1	Contactor	Schneider
2	Total connected load (approx.)	114kw/h
3	Average energy consumption (approx.)	42 kw/h
WATER COOLING
1	Machine water consumption	6000L/h
2	Mold water consumption	6000L/h
AIR CONSUMPTION
1	Compressed air consumption	1.2 kgf/cm2, 3000 L/min
OTHER FEATURES
1	PLC control	MITSUBISHI
2	Human machine interface	Hitech
3	Recipe storage in hard disk	Available
HEATING CONTROL
1	Power supply to heating element	Relay + Contactor	Japan Omron+Korea LG
2	Control	PLC controle
3	Type of thermocouple	K Type
4	Adjustable lower and upper limit alarm	Have
5	Cold start prevention for screw	Have
6	Alarm for thermocouple and heating element breakage	Have, heating element breakage by anperemeter
7	Pre-heating function	Have
Die-ring AND Die-pin
1	one sets of die & pin	One set according to customer
2	Test material	Buyer supply 300kg material to seller for machine testing
OPTION
1	Bottom blow (hydraulic) and sealing unit (pneumatic)	Double blow pin (including expand & up-down & parison seal)
2	Robot	Have
3	Machine Dimension	6.8×3.3×5
4	Total weight	20

HDPE Long Life Solar Floating Pontoon Blow Molding Machine

● Co: Dawson Machinery & Mould Group Co.,Ltd
● Tel: 086-0512-58990369
● Mobile/WhatsApp/Wechat: 008615306246783

● Skype:guo.chenliang
● E-mail: jjeasy@dawson-plastic.com
jjeasyguo@hotmail.com
● Add: 18#610 BIGUIYUAN, YANGTANG ROAD, TANGQIAO TOWN, ZHANGJIAGANG CITY, JIANGSU PROVINCE, CHINA

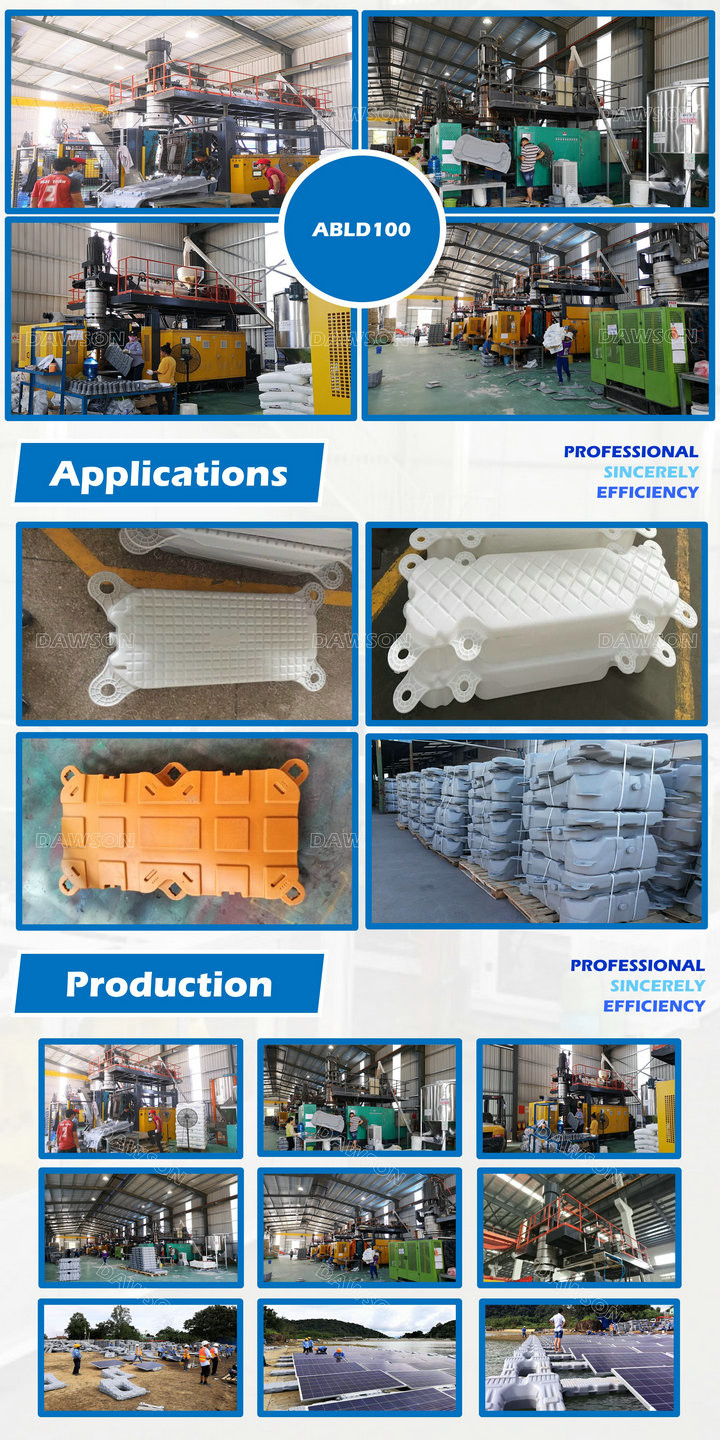

Accumulation type blow molding machine ABLD100

Suitable for making 100-250L HDPE Life buoy, floater...

Equiped with MOOG parison controller

with SERVO Motor
