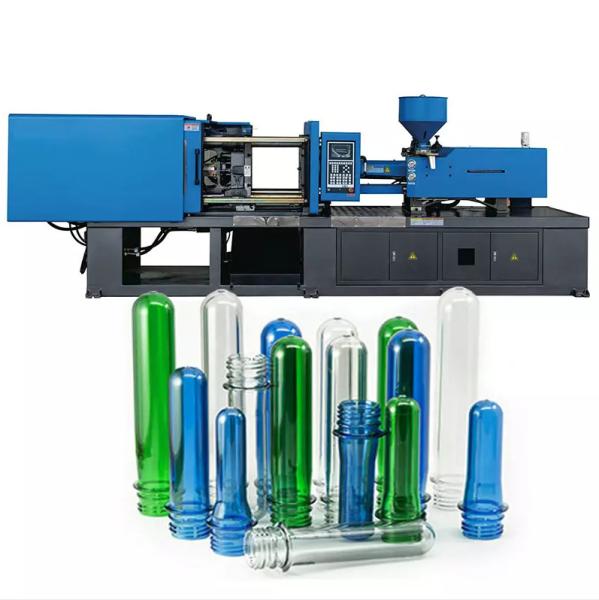

Full Auto Injection Pet Preform Bottle Jar Make Making Automatic
injection moulding machine Molding Machine
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka,
Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy,
India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya,
Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador,
Colombia, Venezuela, Peru....
Products Description
DAWSON MACHINERY & MOULD GROUP
Injection molding machines are also known as injection molding
machines or injection machines. It is the main molding equipment
for thermoplastic or thermosetting plastics using plastic molding
dies to make plastic products of various shapes. Divided into
vertical, horizontal, all-electric. The injection molding machine
heats the plastic and applies a high pressure to the molten plastic
to eject it to fill the mold cavity.
Our injection Molding Machine uses proportional pressure and flow
control, the pressure and the speed can be adjusted, stable
movement curve and gentle shock,the computer is imported from
Industry family.The LCD displaying screen with high clarity has
Chinese and English language to use.Close-loop PID temperature
control with the advantage of high precision.The operating table of
the injection moulding machine have two safety, one is machine
safety, another is electrical safety, that ensures the operators's
safety.
Technical Parameters
Parameters | BST-1800 | BST-2050 | BST-2300 | BST-2600 |
Screw diameter | mm | 48 | 48 | 52 | 56 |
Theoretical Shot weight | CM3 | 420 | 525 | 658 | 770 |
Shot weight | gram | 378 | 472 | 592 | 690 |
Clamping force | KN | 1080 | 2050 | 2300 | 2600 |
Toggle stroke | mm | 440 | 445 | 480 | 530 |
Ejector stroke | mm | 155 | 155 | 155 | 160 |
Space between tie bars | mm | 480*460 | 490*464 | 510*510 | 554*554 |
Mould thickness | mm | 180-470 | 190-470 | 200-510 | 200-550 |
Machine size | m | 5.3*1.6*1.75 | 5.4*1.6*1.75 | 5.7*1.8*2.0 | 6.1*1.7*1.8 |
Machine weight | ton | 5.5 | 6 | 6.5 | 8 |
Standard Feature
Injection Molding Machine Standard Feature |

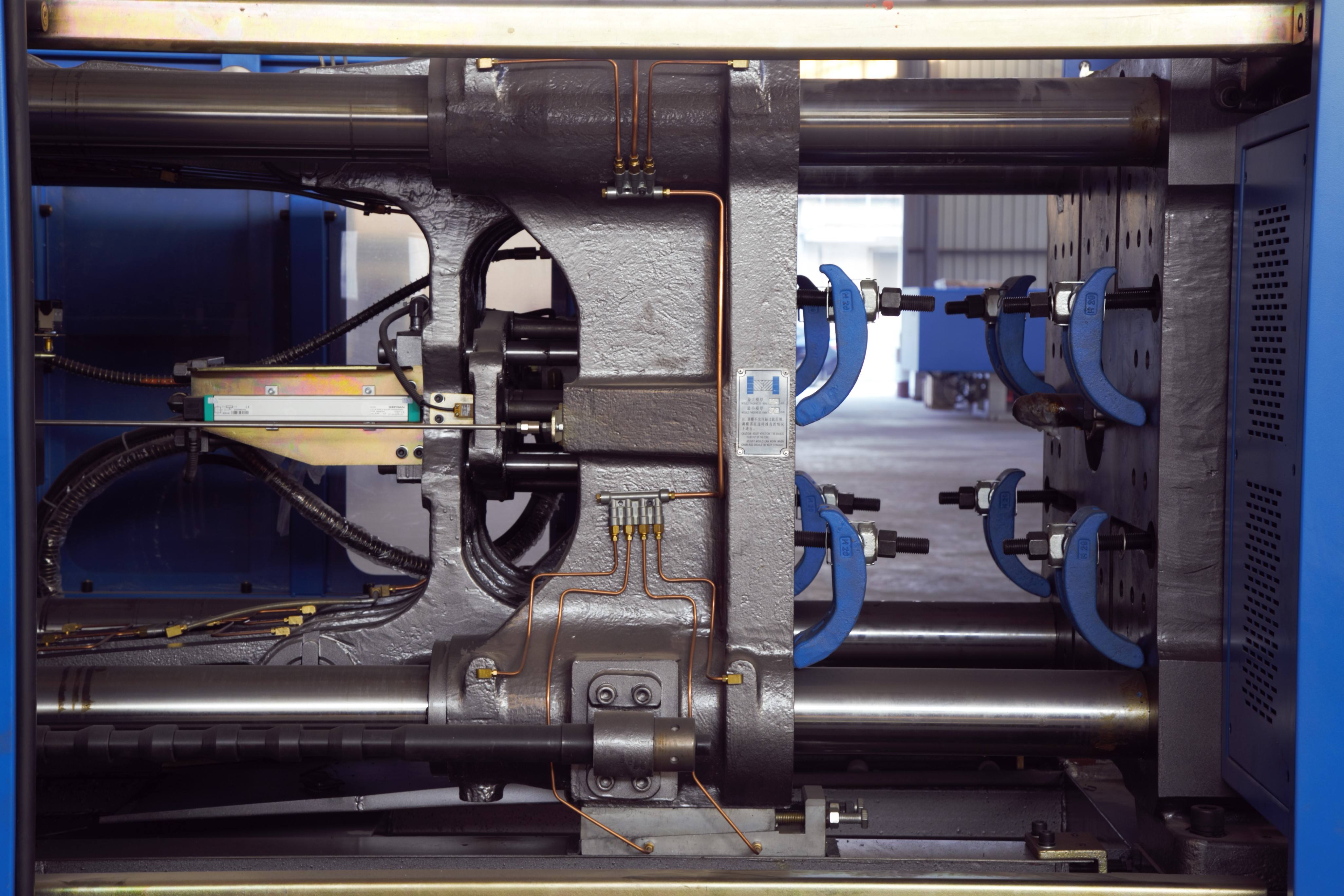

CLAMPING UNIT |
1. New type 5-point toggle device with the advantage of stable
movement curve and gentle shock
2. High-quality mold platen with enough intensity to ensure no out
of shape if high-pressure clamping
3. Hard chrome plated high tensile strength tie bars made of
superior alloy with a good wear and corrosion resistance
ability
4. Wear-resistant guide for moving platen
5. Transducer control clamping stroke
6. Many step controls for speed and pressure of clamping and
opening
7. Ejection device offer dwell, single, more, vibration function
8. Differential high-speed clamping
9. Low pressure mold protection function
10. Hydraulic mold height adjustment derived by gear with rough and
fine operation
11. Mechanical and electrical dual safety interlock
12. Automatic centralized lubrication system with far pressure
detector |
HYDRAULIC UNIT |
1. Proportional pressure and flow control with the advantage of
fine adjustment and high precision
2. Know-how manifold design, compact, reasonable and fast respond
3. Imported world famous hydraulic valves
4. Imported world famous hydraulic sealing rings
5. Import technology hydraulic hose and fittings
6. Low noise hydraulic system
7. Oil tank with inner stainless-steel container
8. Precision oil filter
9. Oil cooler |
CONTROL UNIT |
1. 1. The computer is imported from Industry family. The LCD
displaying screen with high clarity has Chinese and English
language to display
2. World famous electrical components
3. Close-loop PID temperature control with the advantage of high
precision.
4. Deviation preset between high and low temperature. And break
control for temperature sensor.
5. Alarming system in case of cold start and no material in hopper
6. Transducer control the injection and opening stroke to accuracy
of ±0.05mm
7. 99 steps speed control for increasing and reducing to suit for
different technology demands
8. Self-diagnostic and trouble alarm function
9. Parameters lock function to avoid being changed
10. 100 sets of production parameters can be stored into the
computer memorial software
11. Machine can record the quantity of products and automatically
stop if up to the required quantity.
12. Emergency stop device
13. Alarm lamp |
SPARE PARTS |
█ Operation Manual █ Normal hopper
█ Level pad █ Heater band █ Mold clip |
Details Images
Plastic injection molding machines are preferred for manufacturing
medical products, as these machines offer high precision,
accurate, and complex injection molded parts.
Hydraulic injection molding machine is the most popular machine
type, primarily because of its long service life and a wide range
of applications.The hydraulic injection molding machine consists of
a fixed-speed, three-phase motor, and a variable-volume pump.
Hydraulic injection molding machines have a long life, far drive
distance, and low maintenance cost.This type of machine helps in
significant reduction of production cycle time.
Customers mainly use high-tonnage hydraulic machines for molding
large parts. This machine is mainly used for producing high
precision plastic components such as automotive parts, caps &
closers, consumer goods, electrical & electronics goods, and
medical
items.
Plastic injection molding machines are predominantly used in
manufacturing automotive components, interior wrapping, and
assembly
parts, such as automotive exteriors, car lenses, interior
components, under-the-hood components, and filter components.A
strong
shift in the use of plastics instead of iron and steel in the
automotive industry is expected to drive the plastic injection
molding machine market during the forecast period.
Stringent government regulations have forced automotive
manufacturers to use plastics instead of other materials such as
iron and
steel.Rapid economic growth, improved infrastructure, and rising
middle-class population in emerging economies have led to an
increase in vehicle production and sales, which, in turn, increase
the demand for plastic injection molding machines.
Company Profile
DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka,
Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy,
India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria,
South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience
in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow
molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging
machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique
competitive advantage of our owns.
The machines from our company carry good quality and effective
after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do
our best to give you max support!
Customer Photos
We committed to providing customers with plastic machinery &
equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
|
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai.
For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. )
We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo
if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us
for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before
loading,after shipment we provide 24 HRS online support, video
technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual
production cycle will vary according to the degree of
customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and
stable performance. We design the machines according to customers
products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for
guiding the installation and commission the machine, also train the
customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant
design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the
full set of machines after testing in our factory. It will save a
lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do
our best to give you max support!
|
